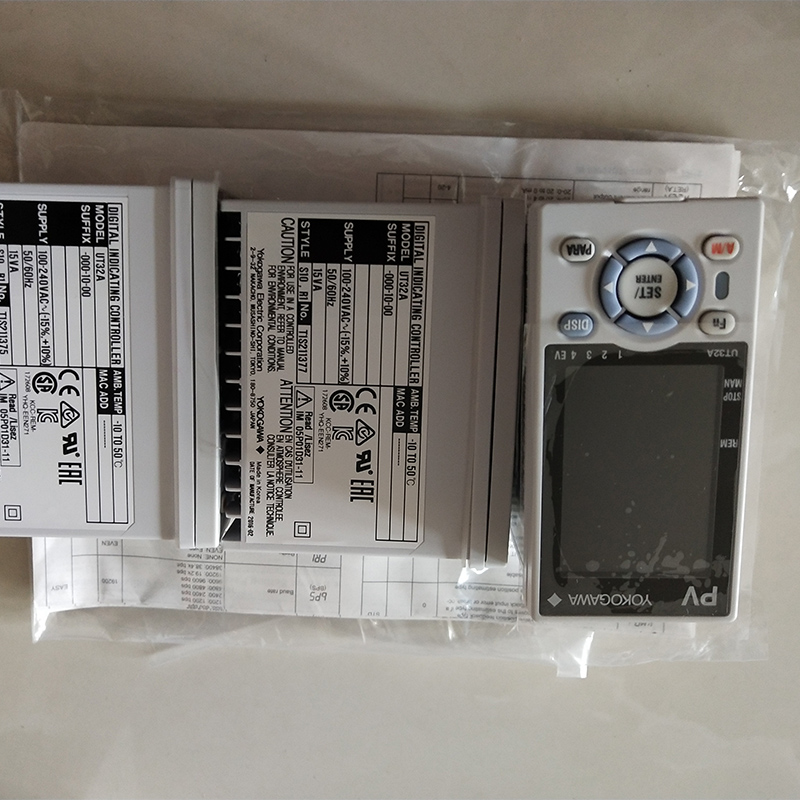

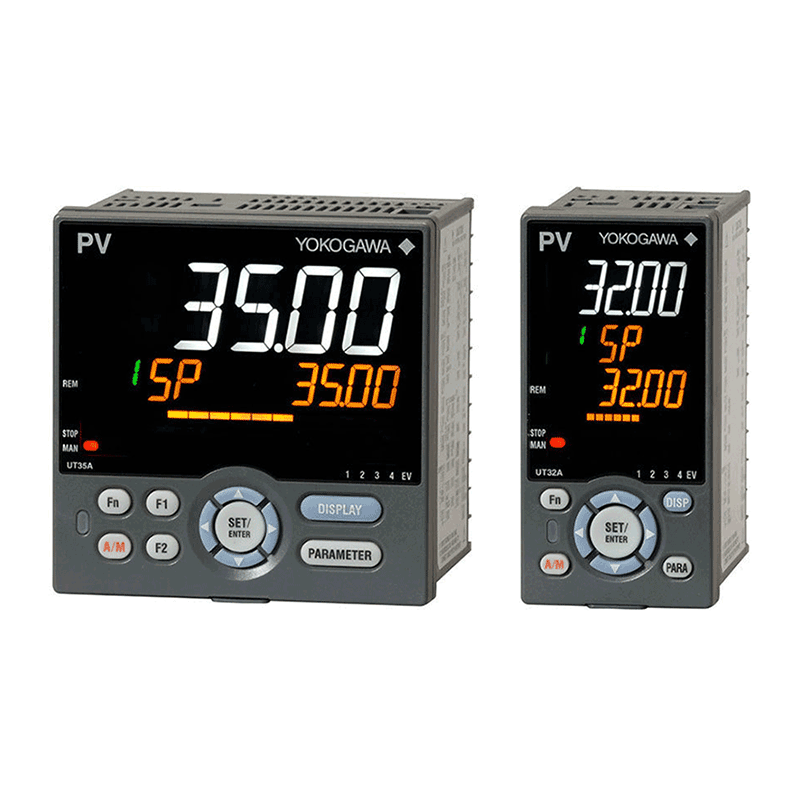

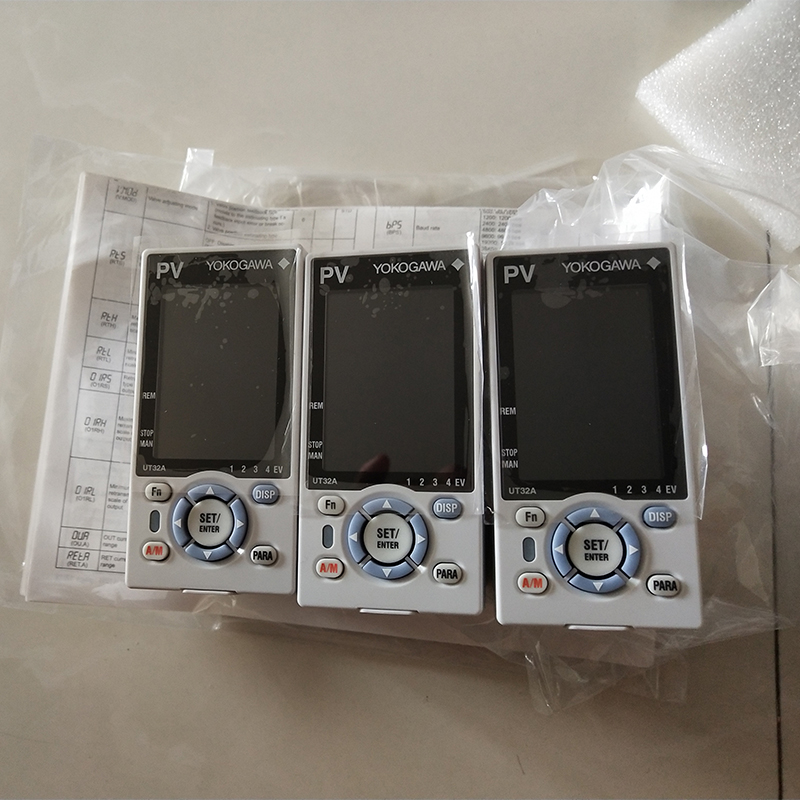

General Purpose Temperature Controller UT32A
Features
● 4 target setpoints (PID numbers) available as standard.
● 3 alarm independent common terminals available as standard.
● Ladder sequence programs can be built.
● Simple operation.
● Up to 8 DOs (combinations available).
● Multiple language operation manual (Japanese, English, German, French, Spanish, Chinese and Korean) available. Please specify the desired language when ordering.
● Detailed code model available to customize specifications best suited to you.

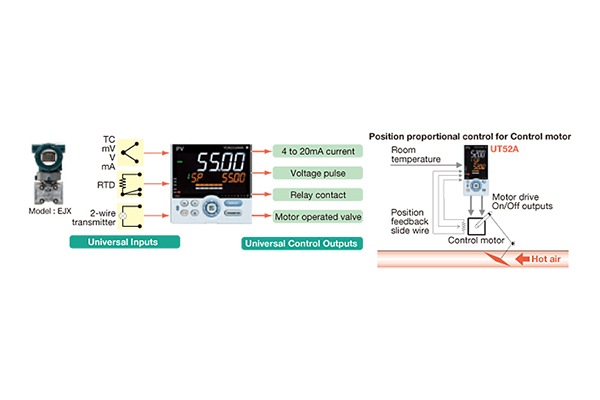

Advanced Control
Control Modes
The control mode allows easily configuring settings and making changes with parameters.
● Single-loop control.
● 5 Built-in Control Types.
● PID control.
● ON/OFF control (1 point of hysteresis).
● ON/OFF control (2 points of hysteresis).
● Two-position, two-level control.
● Heating/cooling control.
For the correspondence between the above control mode and control types for each model, please refer to the specifications.
Product Details

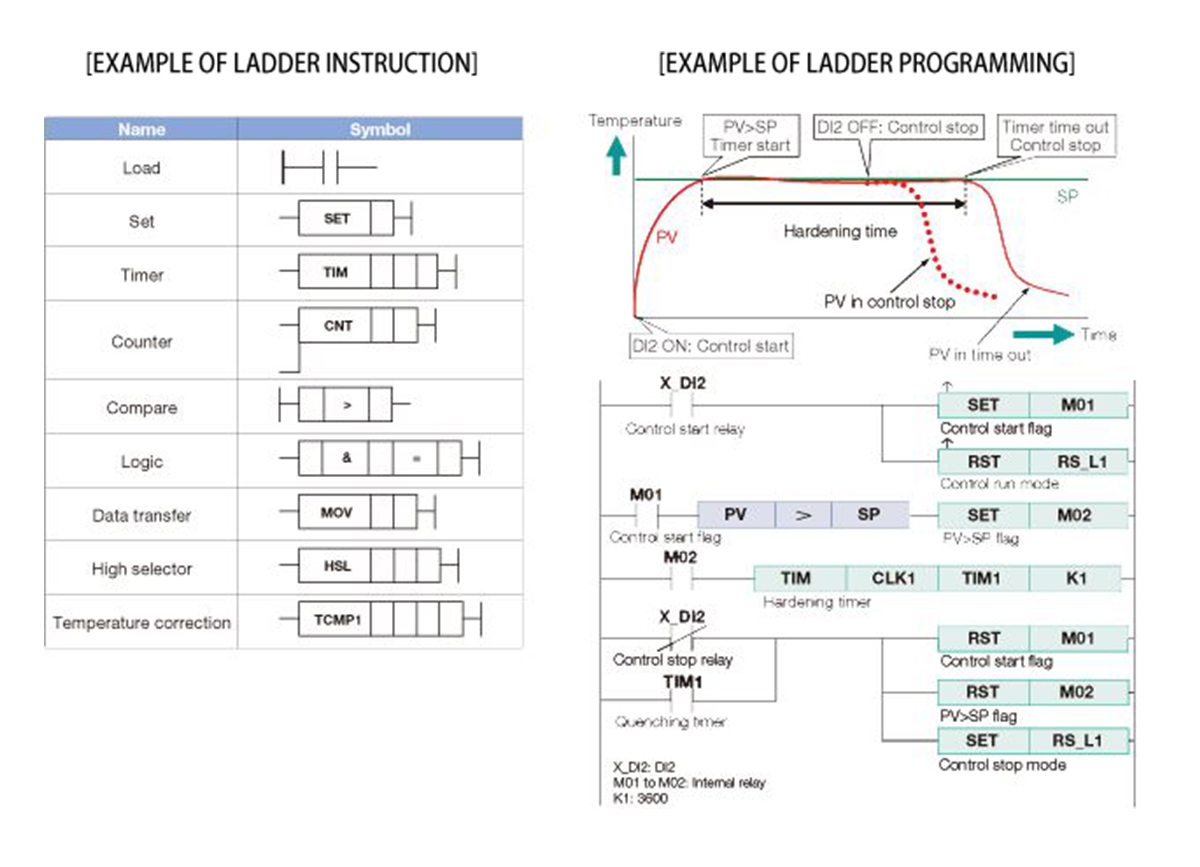

Ladder Sequence Control
With built-in ladder sequence control, the range of applications are dramatically increased. This feature is standard in all the UTAdvanced controllers (except UM33A). The ladder sequence control function can replace a small PLC required by the application. Sequence control and PID control can be performed simultaneously.
● Monitoring and control of external machinery.
E.g.: Lamps, switches, timers.
● Solve digital input/output logic functionality easily.
Number of basic command types: 13.
Number of application command types: 73.
Reliability
Dependable 3 year warranty*1.
Backed by the high reliability and quality that Yokogawa has cultivated over many years.
RoHS/WEEE compliant.
UTAdvanced is environmentally safe when disposing.
Dust-proof and drip-proof front panel (NEMA4*2 /IP66).
UTAdvanced can also be used for food-processing equipment with washable control panels.
1.The 3 year warranty extends 36 months after shipment from our factory.
2.Hose down test only.
